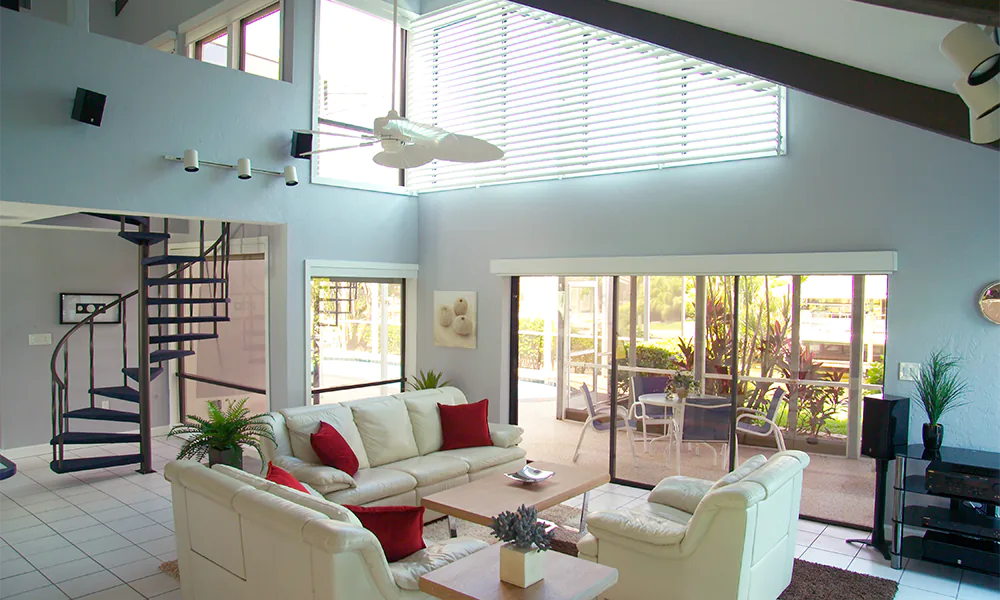

FlexLouver Rack Arm System

Precise Light Control for Hard to Shade Areas

Designed to control solar energy, light, and glare, the FlexLouver Rack Arm System features an operable louver system for interior or exterior use. For precise light control in venues such as galleries or museums, the FlexLouver Rack Arm System provides years of dependable service with minimal maintenance. The shading system finely tilts open or close to control the light levels within a space. Perfect for difficult glazing situations, each shading system is custom designed to meet specific application requirements.


Product Specs

  • Flexible system sizes 2” (50 mm), interior only. See submittal for additional sizes.
  • Perforated slats available with the 2" (50 mm) and 3" (80 mm) options. See submittal for additional sizes.
  • Rolled edge system 3" (80 mm). See submittal for additional sizes.
  • Extruded system 3" (75 mm) and 3-1/2" (88 mm). See submittal for additional sizes.
  • Colors: 2" (50 mm): silver or white, 3" (75 mm): natural anodized or standard RAL color, 3" (80 mm): silver (RAL9006) or white (RAL9010), 3" (88 mm): natural anodized. Custom powder coat colors available.
  • System can be installed on vertical, horizontal or inclined glazing.
  • System can shade almost any shape of glazing-circle, triangle, trapezoid, etc.
  • Automatic controls available for optimum solar control, cutting solar gains by more than 90% and reducing HVAC requirements.
  • Rack arm types: Standard, Heavy Duty and Box Rack Arm.
  • Slats can be adjusted between fully opened and fully closed but do not retract.
  • Precise light controls for hard to shade areas.
  • Adjustable slat angles prevent direct sun penetration, whatever the sun angle. Precise light control can be achieved with slow tilting of slats.
  • High levels of light exclusion achievable with the extruded 3" (88 mm) system.
  • System can withstand very high wind speeds. Care must be taken where there is a risk of significant ice or snow.
  • Product designed for interior or exterior use, depending on slat selection.

ANSI/WCMA A100.1-2022 Child Safety Standard

Effective June 1, 2024, in compliance with the updated ANSI/WCMA A100.1-2022 child safety standard, all Draper window shades operated by a bead chain will be furnished with a tensioned hold-down device that is permanently attached and partially disables the product if not installed correctly. This hold-down should be installed with tension on the chain.

All bead chain operated window shades will include:

  • Permanently installed spring-loaded tensioned hold-down device
  • Approved permanent warning label attached
  • Approved mechanical fasteners for the tension device included. Screws provided are not suitable for all mounting surfaces. The installer is responsible for secure mounting using appropriate hardware for the site conditions. Consult with contractors and builders as needed.

If the tension device is not installed with appropriate tension on the bead chain, the shade will be rendered partially inoperable. If installed properly, the tension device will prevent the creation of a hazardous loop and will maintain tension on the bead chain.

Approved permanent warning label

Learn more about the new child safety standard

At the link below, you can see more information about the new child safety standard, mounting methods for the tensioned hold-down device, alternatives to bead chain products, and more.

Click here for more information
Tensioned hold-down device
