Acumen XL E Electric Projection Screen

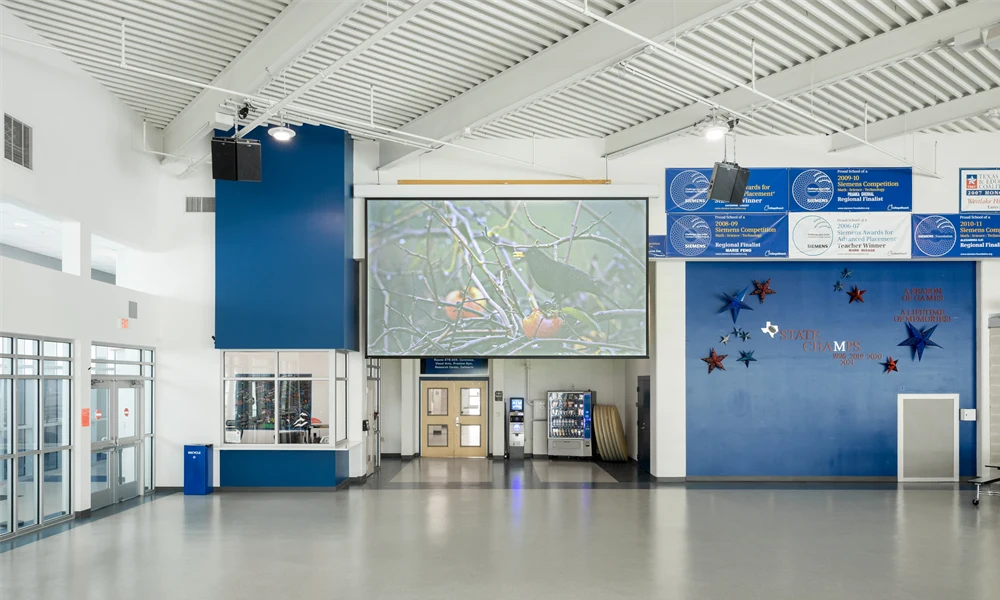

Acumen XL E delivers a sleek, surface-mounted projection screen for large venues with an elegantly contoured design and white powder-coated finish.

Acumen XL E handles frequent, high demand use while maintaining a refined, modern appearance. The surface-mounted design features an elegantly contoured case and a white powder-coated finish that complements contemporary interiors. Floating mounting brackets ensure straightforward installation, and the removable fascia allows quick access for maintenance. Quiet, low-voltage motors and integrated control options support reliable AV performance.

Patent Information

7-Year Warranty* Ready to purchase

Product Specs

Case dimensions: 9-1/4” high x 8-1/8” deep (235 mm x 206 mm).

Maximum image width up to 18’ (5.5 m) wide. Custom sizes available.

Streamlined extruded aluminum case finished in white powder coat (standard), black available upon request.

Available with the OptiView line of viewing surfaces.

HDTV and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for special sizes.

Black drop standard, depending on screen size. Extra drop above image area available upon request.

Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.

Includes both floating mounting brackets and ceiling suspension brackets.

UL Listed.

Seven-year warranty. *USA and Canada only.

Viewing Surfaces Available:

Matt White XT1000E

Contrast Grey XH800E

Supporting Documents

Click the and icons to navigate the folders. Click the document name to download.

CSI 3-Part Specification

Submittal

BIM Object

Care & Maintenance Instructions

Sizes, Part Numbers & Prices

View all available sizes and surfaces on one page

Surface Material: Image Format: Diagonal (Image area): Voltage: Motor Options: Unit of measure:

Imperial (USA)

Metric

Part number:	152101
Surface material:	Matt White XT1000E
Image Format:	16:10
Diagonal size:	165"
Image/Viewable area:	87 1/2" x 140"
Overall size:	92 1/2" x 144"
Case length:	159 ¼"
Product weight:	144 pounds
Shipping weight:	240 pounds
U.S. Retail Price:	$3532

Draper manufactures custom size screens to meet your specification. Virtually any size within the maximum shown for a given model is available. Please call for pricing on special sizes.
