Access V Electric Projection Screen

The Access V projection screen offers a tab-tensioned surface, easy maintenance access, and ceiling-recessed design for complete concealment.

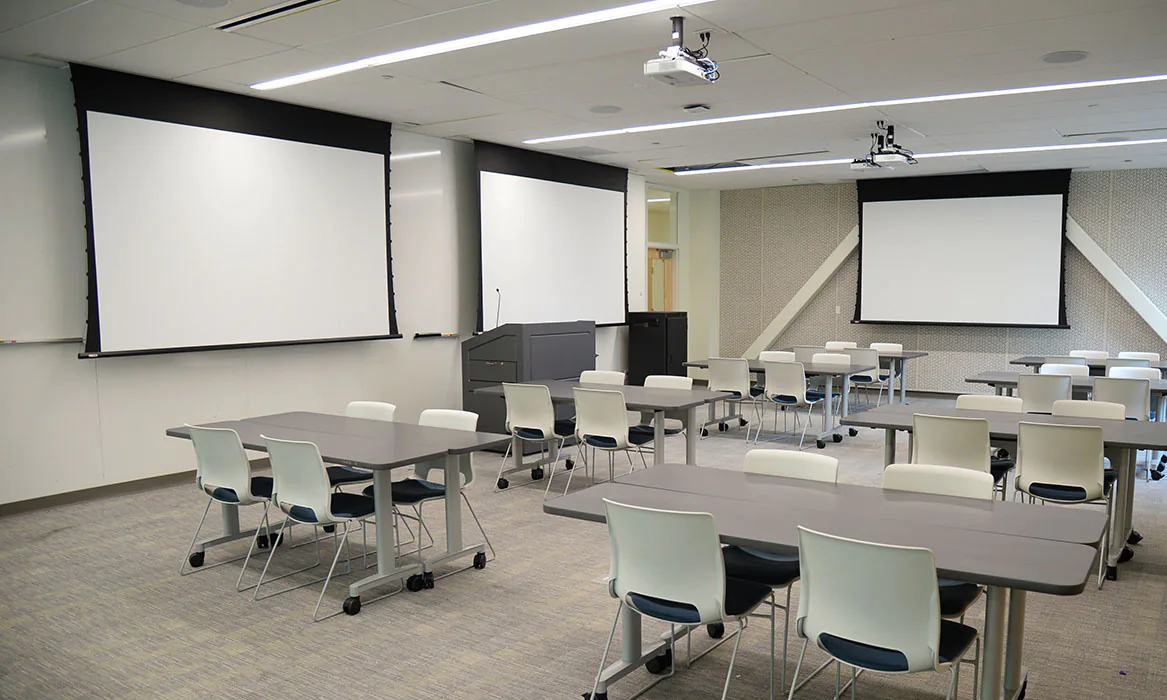

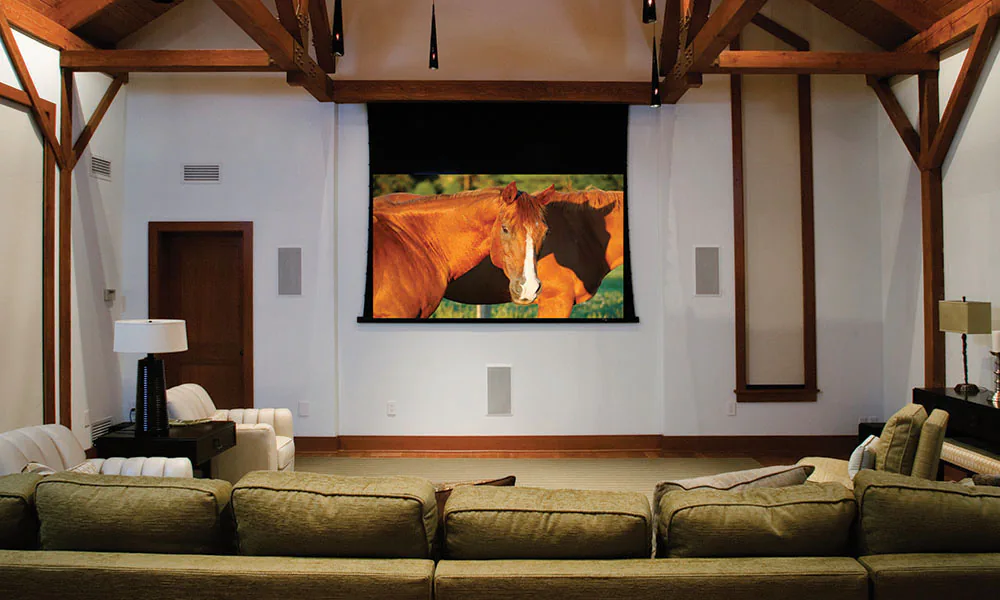

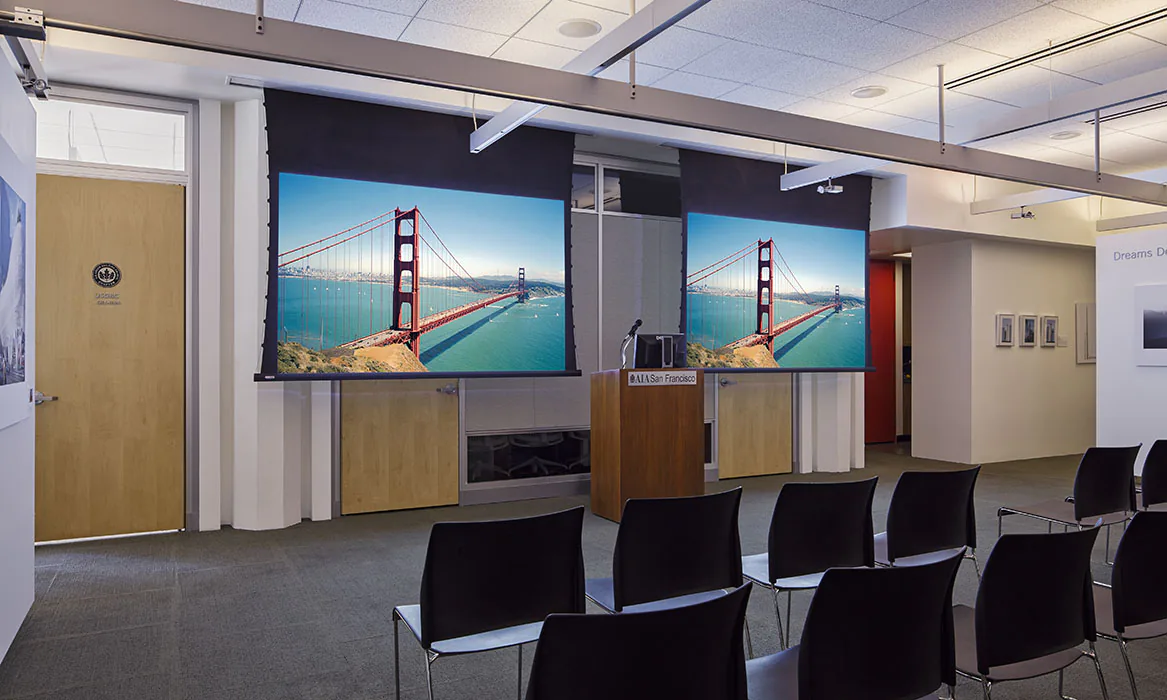

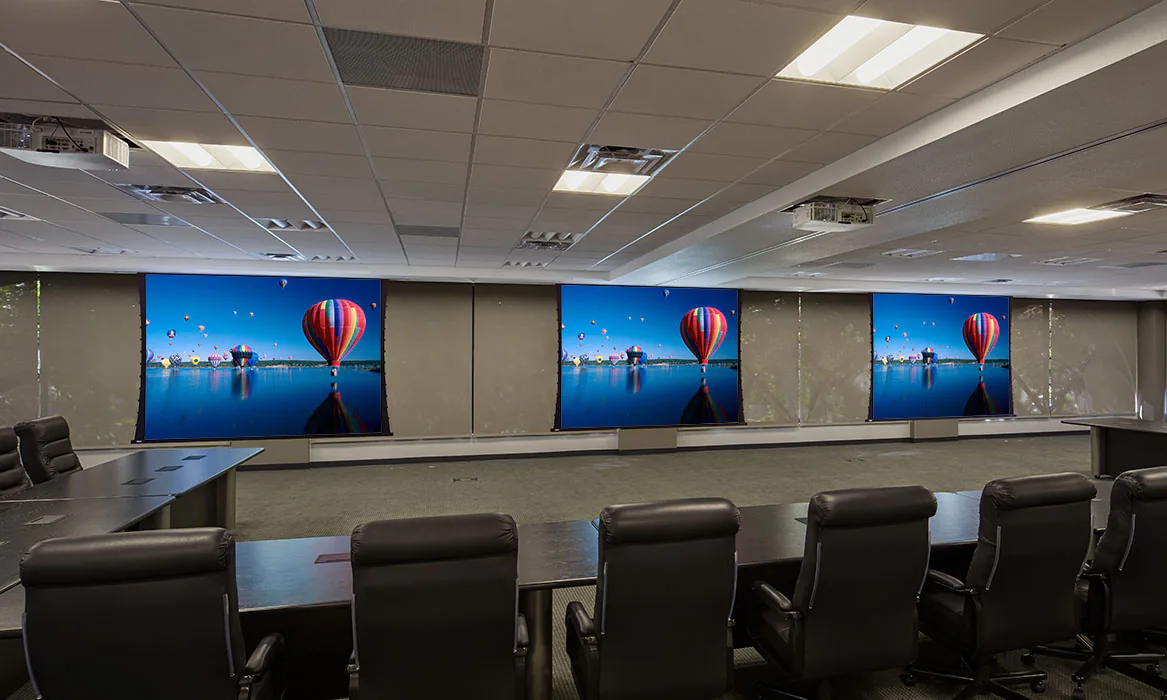

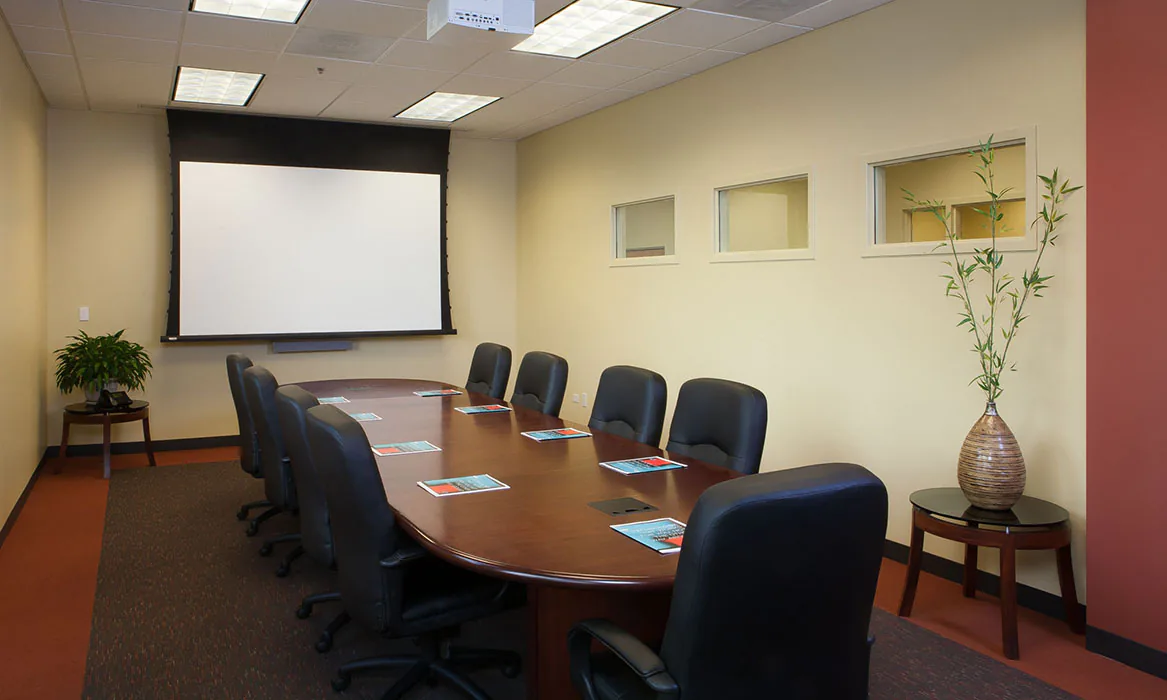

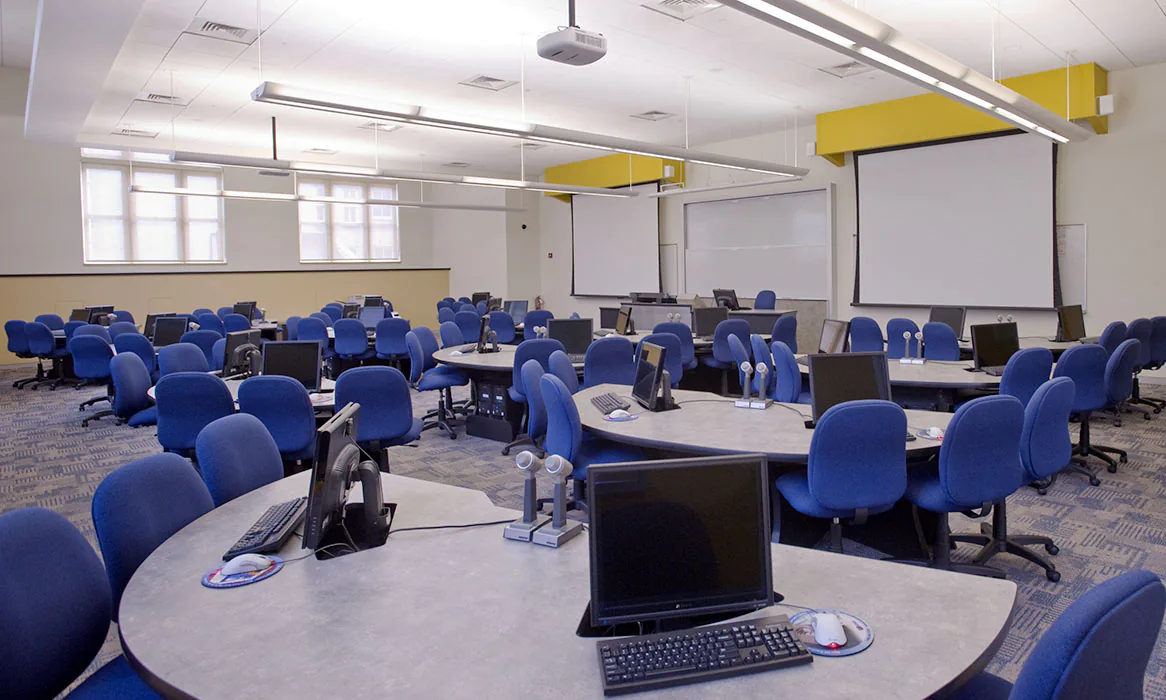

The Access V projection screen features a premium, ceiling-recessed solution perfect for commercial applications like universities, boardrooms, and training rooms, as well as high-end home theaters. Its concealed design keeps the screen hidden when not in use, ensuring a clean, professional look. Draper tab-tensioned screens deliver a perfectly flat viewing surface and RF-welded tabs ensure long-lasting durability. A bottom access panel allows for easy maintenance, with no exposed fasteners for a sleek finish. The screen is also plenum-rated, making it suitable for use in air handling spaces.


Product Specs

  • Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange.
  • Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal for details.
  • Maximum image width up to 16' (488 cm) wide, depending on surface selection.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments for mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom access panel door detachable for easy service and maintenance.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Low voltage, video interface or other controls can be built into housing for below ceiling access.
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options available.
  • White case standard, black available upon request.
  • Custom sizes available.
  • UL Listed.

Sizes, Part Numbers & Prices

Surface Material:  Image Format:  Diagonal (Image area): Voltage: Motor Options:  Unit of measure:
Part number:140111
Surface material:Matt White XT1000VB
Image Format:16:10
Diagonal size:94"
Image/Viewable area:50" x 80"
Case length:102 1/8"
Product weight:73 pounds
Shipping weight:86 pounds
U.S. Retail Price:$4890




Draper manufactures custom size screens to meet your specification. Virtually any size within the maximum shown for a given model is available. Please call for pricing on special sizes including the new 21:9 format.

Related Products & Accessories

CONTROLS for this screen.
Access E
Access M
Access XL V
Case: Access Case
Ultimate Access V

Videos

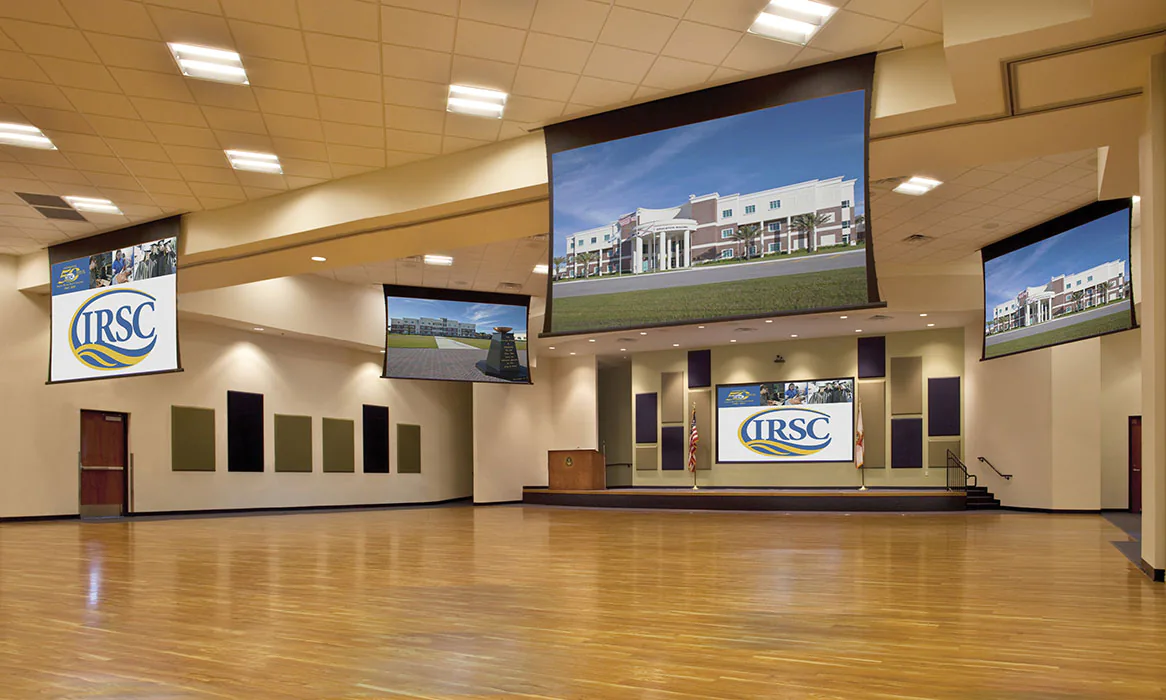

Case Studies
