IntelliFlex I/O
Scalable and Flexible Control Solution for Motorized Shades

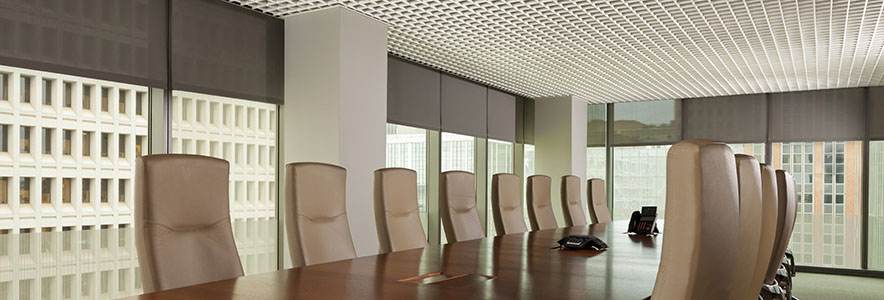

Motorized FlexShade I/O AC

A Complete control solution


Window shade automation should be elegant, simple, and scalable. IntelliFlex I/O is a complete control solution for motorized shades that is flexible and expandable to the size and complexity of a project.

Intelligent motors are connected to wall switches and other input devices through a wired network. This network allows communication between the devices and distributes power to them from the motors, eliminating the need for external power supplies.

System Overview

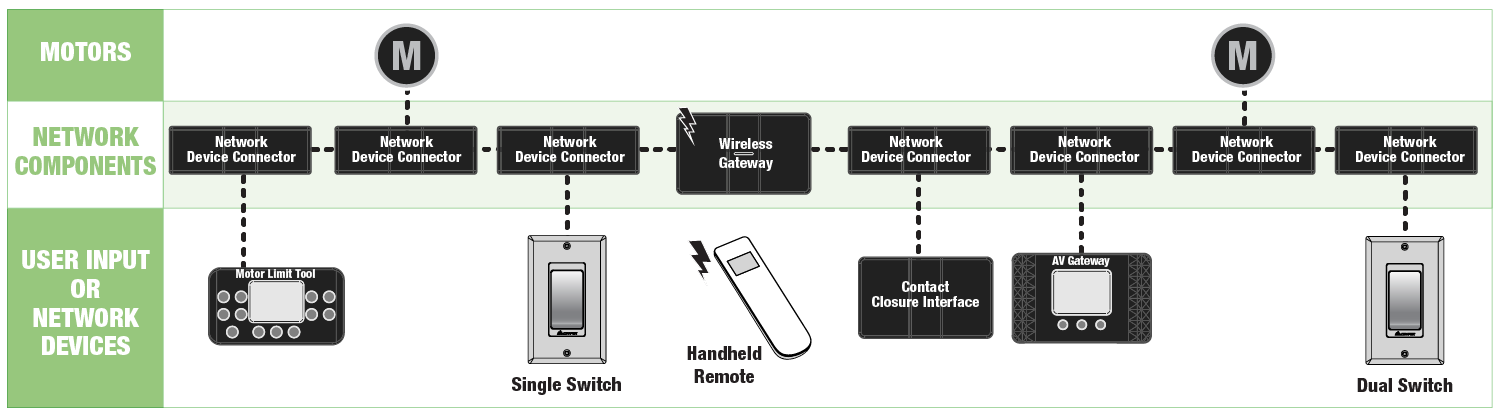

IntelliFlex I/O diagram

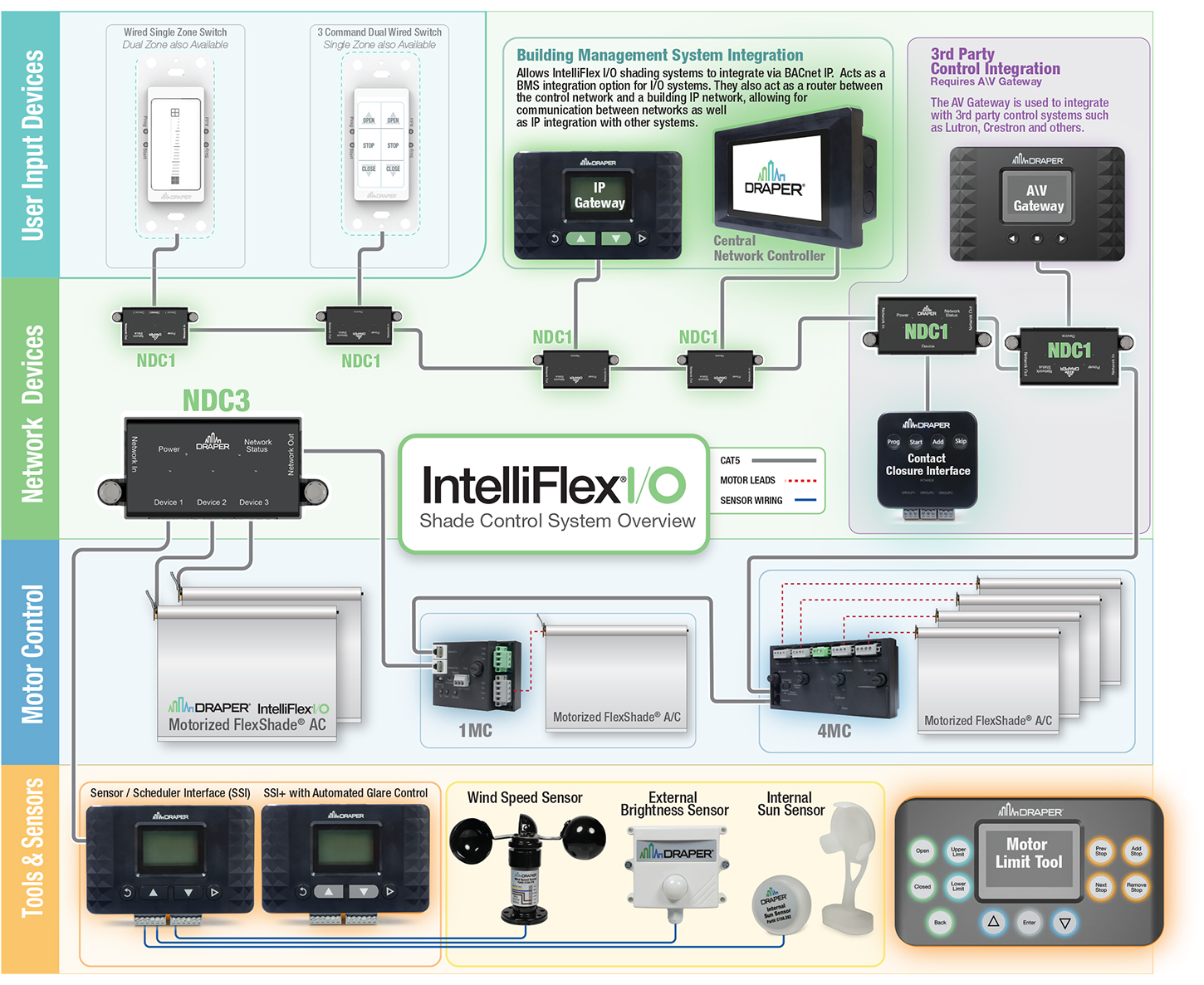

The backbone of IntelliFlex I/O is the Network Device Connector (NDC). An NDC connects to each system component, such as a shade motor, wall switch, or other interface. Power comes from shade motors, and is distributed through the network via the NDCs. Connect up to 120 devices and extend to 4000 feet in total with no further restrictions on connections between components.

Simple to purchase, install, and use


Quote all components in a single line item on DraperOnline, our online window shade ordering system. There is no need to remember component part numbers, or worry about compatibility between controls and motors.

Once installed, configuration is done from the devices themselves. Without a computer, you can copy and paste limits from one shade to another, or from one shade to the entire network. Visual displays make troubleshooting fast and easy.

I/O is highly customizable, and can grow and adapt as needs change without the need to replace existing hardware and wiring.

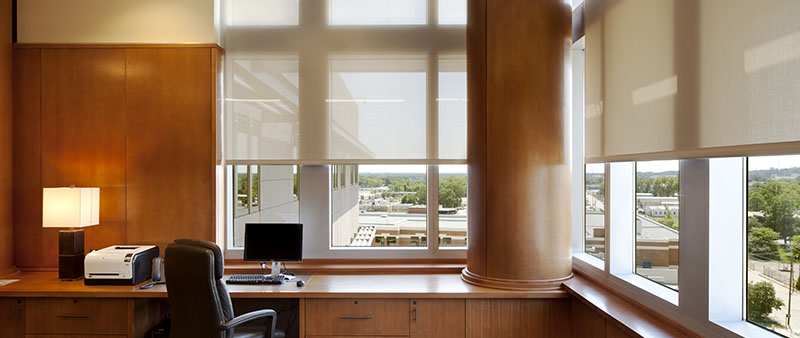

Motorized FlexShade I/O AC

Component Highlights

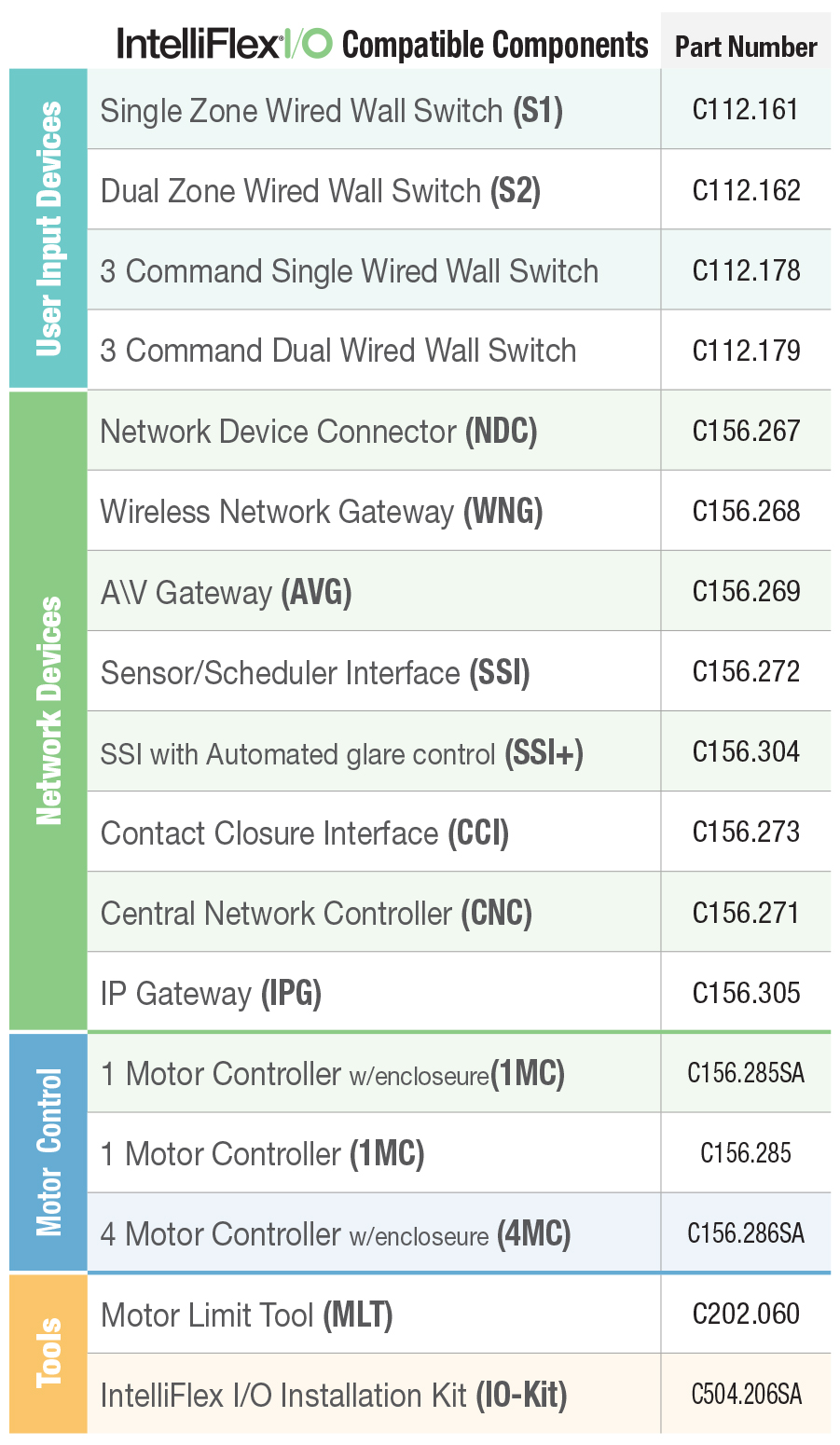

A selection of components from the IntelliFlex I/O system are featured below. Click here to see a full list of all available components.


Handheld Remote

  • Handheld Touch Remote Control
  • Controls up to 32 channels
  • RF wireless connection


Single Zone Wall Switch

  • Control any number of motors
  • Set any number of intermediate stops
  • LEDs indicate system status


Dual Zone Wall Switch

  • Two independent control zones
  • Set any number of intermediate stops
  • LEDs indicate system status


A\V Gateway

  • Supports RS-232 and RS-485
  • 6 Contact Closure inputs
  • Low voltage trigger
  • IR receiver input


Sensor/Schedule Interface

  • Supports photodiode and pulse sensors
  • Simple on-device config with LCD display
  • Schedule events on any combination of days of the week


Motor Limit Tool

  • Connect to motor or network
  • LCD display for easy control
  • Copy/paste motor limits to other motors
